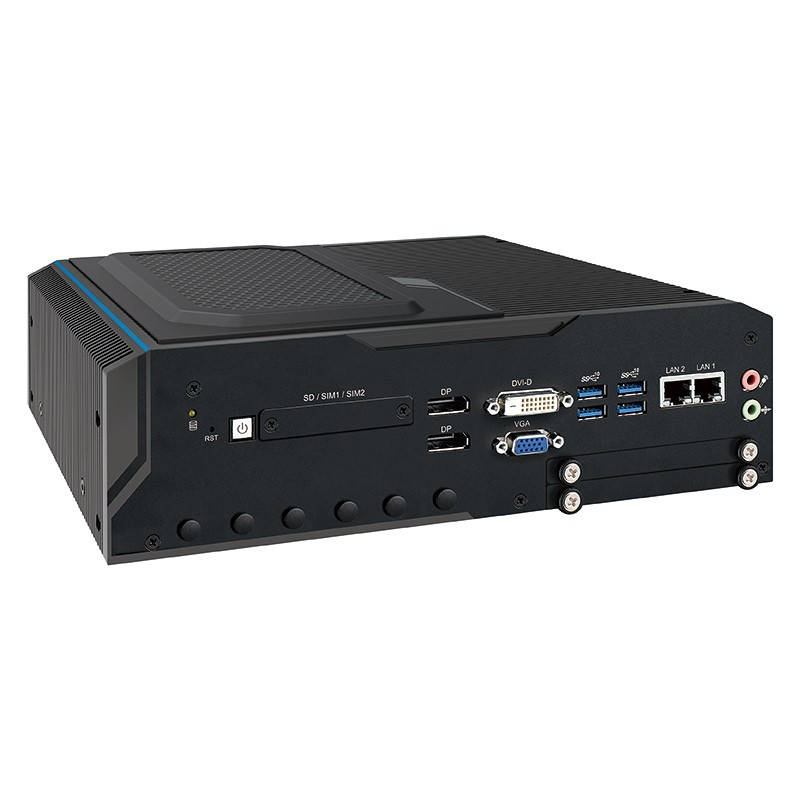

Workstation-grade 10th generation Intel® Xeon®/Core™ i9/i7/i5/i3 processor, compact NVIDIA® or AMD MXM graphics engine, supports NVIDIA® CUDA cores, up to 8 display interfaces, all-in-one integrated features, multiple I/O connection, 2 SIM sockets for remarkable mobile availability, PCI/PCIe slot, 6 USB 3.2, Isolated DIO, smart manageability, 9V to 50V power input with 80V surge protection, ignition control. The EVS-2000 Series Fanless AI Computing System makes versatile function possible for Facial Recognition, Factory Automation, Smart Retail, Machine Vision and any AI oriented embedded applications.
Industry-leading performance with Intel’s 10-core Intel Xeon/Core i9/i7/i5/i3 processor running with Intel W480E Chipset (CML-S), max 65W TDP CPU supported. The EVS-2000 has many improvements including max 45% system performance improved and 87% graphics performance enhanced than the former 9th/8th Gen Intel CML platform.
The EVS-2000 supports USB 3.2 Gen 2 (10G), 10GigE LAN (10G), 10G SFP+ (10G), PCIe 3.0 (8GT/s), SATA III (6G), 2.5GigE LAN (2.5G), GigE LAN (1G).
Multiple compact M.2 for WWAN, WLAN, PCIe Storage or CAN B. The EVS-2000 also has PCI/PCIe expansion for 10G PoE+, 10G LAN, 10G SFP+, PoE+ LAN, GigE LAN, Fiber LAN, LAN Switch or multiple USB connections.
Rugged SUMIT A, B for 5G Networks, 10G LAN, 10G SFP+, 2.5G LAN, SIM Card, PoE+ LAN, GigE LAN, Fiber LAN or Video Capture.
With its rugged design and fanless -40°C to 60°C wide range operating temperature, the EVS-2000 is designed to support many applications. The always-on wireless communication supports seamless data delivery and there is a ignition Power Control for in-vehicle applications. This device is EN50155 & EN50121-3-2 certified rugged regulations.
| CPU | LGA 1200 Socket supports10th Gen Intel®Xeon®/Core™ i9/i7/i5/i3 Processor (Comet Lake-S) |
| Memory/Storage | 2 DDR4 2933MHz Memory, up to 64GB |
| Storage | 1 Micro SD Card, Push-in/Push-out Ejector |
| Graphics | Intel® UHD Graphics 630 Independent MXM Graphics：By request |
| Expansion | Mini PCle PCl/PCe M.2 SUMIT A, B |
| LAN | LAN 1: Intel® I219LM GigE LAN supports iAMT 14.0 |
| I/O | 3 x COM RS-232/422/485 (ESD 8kV) |
| Video/Audio | 1 x VGA : Up to 1920 x 1200 @60Hz Realtek ALC892, 5.1 Channel HD Audio |
| Operating system | Windows 10 |
| Input voltage | 9 – 50V DC input |
| Dimensions | 280mm (W) x 215mm (L) x 79mm (H) |
| Operating temperature | -40°C to 60°C |
