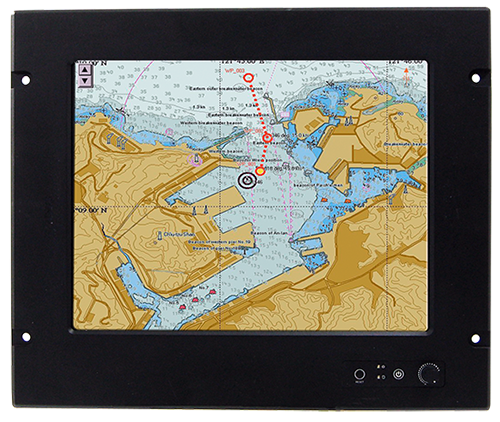

This marine-certified display has been designed to complement our range of marine computers. The 19-inch display offers sunlight readability and touch screen options for use in bridge consoles, control rooms and other compartments in applications such as navigation, control, and monitoring and alarm systems. All platforms are certified to DNV 2.4 and IEC 60945.
The MCD-191 is certified to marine standards DNV 2.4, IACS E10 and IEC60945, ensuring it can be specified for a variety of shipborne applications with confidence.
19-inch display with full dimming options makes the MCD-191 ideal for night use, while the transflective film option enables sunlight readability for day use.
The MCD-191 can be panel, VESA or desk-mounted with an optional mounting kit. The mounting flexibility ensures the platform can be integrated into the desired install environment with minimal time and effort.
Customise the screen for protection levels that meet your exact application requirements. The MCD-191 can be specified with either SAW or resistive touchscreens depending on your needs. Add additional protection with 3mm glass.
An IP66 front panel delivers protection against dust and water ingress for reliable operation in fluid and dust-laden environments.
The MCD-191 has an operating temperature range of -15°C to 55°C, providing extended operational life in applications with challenging temperature demands.
1280 x 1024
400cd/m2, optional transflective
Optional SAW or 5-wire resistive
2 x RS232 for optional touch, remote
1 x VGA, 1 x composite video, 1 x s-video, 1 x DVID
24 VDC, 45W
483mm (W) x 444mm (H) x 75mm (D)
Aluminium front bezel
-15°C to 55°C
5-500Hz, 1grms, 3 axis
