Specialized Rugged Servers

Powerful, Resilient, I/O Dense

Powerful, Resilient, I/O Dense

Captec

Shock, vibration, extreme temperatures, electromagnetic interference and unstable power can all compromise conventional server platforms. Captec’s rugged servers are engineered to maintain reliable compute, storage and networking performance within demanding operational environments, supporting long-term deployment across naval/maritime, subsea, airborne, land and emerging edge applications.

Supporting applications including:

  • AI & machine learning
  • Image & signal processing
  • Visualization & simulation
  • Data acquisition
  • Communications infrastructure
  • Edge computing
Captec Faded Yellow Line

Platform Benefits

Environmental Resilience

Maintain reliable operation under shock, vibration, temperature extremes and demanding environmental conditions.

High-Density Performance

Support server-class processing and optional GPU acceleration within rugged rackmount platforms.

Deployment Optimized

Short-depth configurations and flexible integration support constrained installations.

Standards Aligned

Platforms engineered and tested to MIL-STD and DEF-STAN standards in line with program-specific application requirements.

Thermal Management

Maintain stable performance within sub-zero and high temperature environments through engineered cooling architectures.

Platform Integration

Integrate seamlessly with deployed power, networking, and mechanical infrastructures.

Captec Faded Yellow Line

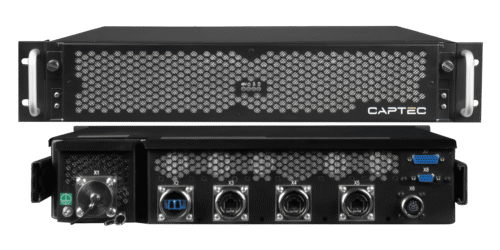

SRS-02 2U Specialized Rugged Server

Typical Application

Deployed compute, command and surveillance applications where reliable highperformance processing is required within space-constrained rack installations.

Captec SRS-02 2U Specialized Rugged Server
Platform Highlights
  • 2U short-depth rackmount configuration
  • 5th Generation Intel® Xeon®, Intel® Core™ or AMD EPYC™ processing
  • Up to 2TB ECC memory with removable NVMe storage
  • Configurable fiber connectivity up to 100Gb/s
  • 18–60V DC or optional 100–240V AC input
  • MIL-STD-810H, MIL-STD-461G and DO-160G ruggedization

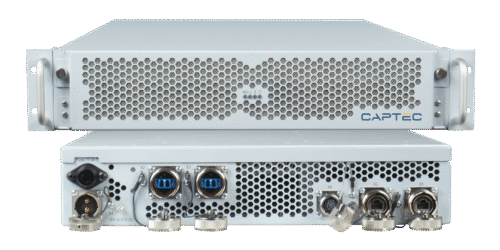

SRS-01 2U Specialized Rugged Server

Typical Application

Data-intensive processing applications including sensor acquisition, sonar processing, data replay and real-time analysis.

Captec SRS-01 2U Specialized Rugged Server
Platform Highlights
  • 2U rackmount configuration
  • Dual 3rd Generation Intel® Xeon® processing with up to 4TB ECC memory
  • 16 removable 2.5-inch SATA/SAS drives
  • Broadcom MegaRAID storage management
  • Dual 10Gb copper with configurable fiber connectivity up to 100Gb/s
  • 18–60V DC or optional 100–240V AC input
  • MIL-STD-810H, MIL-STD-461G, DO-160G and JS 55555 ruggedization

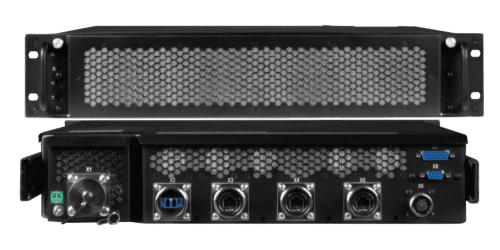

SRS-05 2U Specialized Rugged Server

Typical Application

Applications requiring a balanced combination of compute performance, storage capacity and networking within a single rugged platform.

Captec SRS-05 2U Specialized Rugged Server
Platform Highlights
  • 2U rackmount configuration
  • Intel® Xeon® Gold processing with up to 2TB memory
  • Eight removable U.2/U.3 NVMe drives
  • Six PCIe 4.0 x16 expansion slots
  • 10Gb copper and fiber connectivity
  • Convertible rear I/O panel with filtered 90–264V AC input
  • MIL-STD-810H, MIL-STD-901E and MILSTD-461 ruggedization

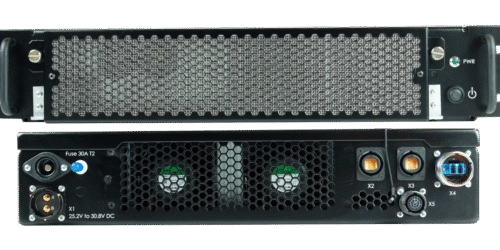

SRS-04 2U Specialized Rugged Server

Typical Application

Graphics-intensive processing, sensor fusion, video analytics and AI-accelerated workloads requiring high-performance GPU capability.

Captec SRS-04 2U Specialized Rugged Server
Platform Highlights
  • 2U short-depth rackmount configuration
  • 3rd Generation Intel® Xeon® scalable processing
  • Dual NVIDIA® A10 Tensor Core GPUs
  • Dual 100Gb fiber connectivity
  • Secure PXE boot or NVMe storage
  • 18–60V DC input
  • DO-160G, MIL-STD-810 and MIL-STD-461G ruggedization

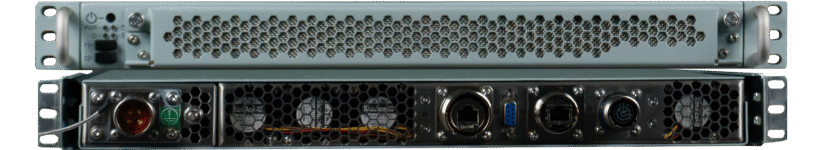

SRS-03 1U Specialized Rugged Server

Typical Application

Applications requiring high-capacity data capture, removable storage and long-term data retention within demanding operational environments.

Captec SRS-03 1U Specialized Rugged Server
Platform Highlights
  • 1U rackmount configuration
  • Dual 5th Generation Intel® Xeon® processing with up to 4TB ECC memory
  • Four removable 2.5-inch drives with up to two internal NVMe drives
  • Dual 10Gb copper with configurable fiber connectivity up to 100Gb/s
  • MIL-DTL-38999 connectivity
  • 18–60V DC or optional 100–240V AC input
  • MIL-STD-810H and MIL-STD-461G ruggedization
