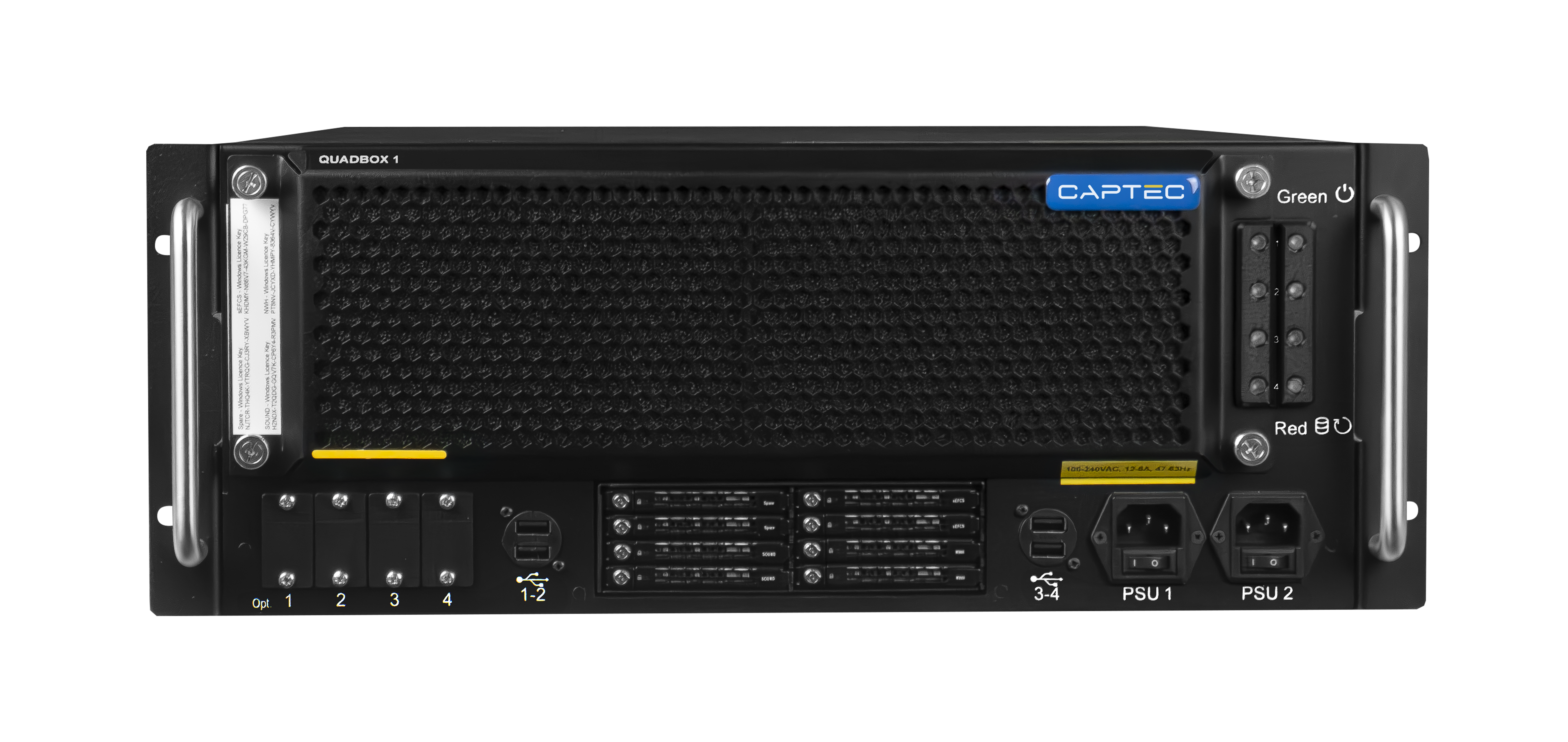

The MN-01 provides four Image Generation (IG) systems in one 4U enclosure. Captec’s unique system design maximizes the potential for Intel Xeon and Core CPUs, as well as NVIDIA RTX/Quadro GPUs, offering the same performance as four individual IG systems while saving on space, weight and reducing maintenance and repair time. The option of an integrated Quadro Sync card enables the independent graphic card outputs to be used for multiple displays to form large-format, perfectly synchronized displays.
The MN-01 houses four independent Image Generation (IG) systems within a single 4U enclosure.
Each MN-01 system includes four IG nodes, providing four individual image generation systems within the chassis.
Available configurations include Intel Core i5-10400, Core i7-10700 and Core i9-10900E processors.
Each node supports NVIDIA RTX or Quadro graphics, with discrete GPU expansion providing additional display outputs.
Each node supports up to 64GB DDR4 2933MHz memory, removable 2.5-inch SSD storage and one M.2 NVMe drive.

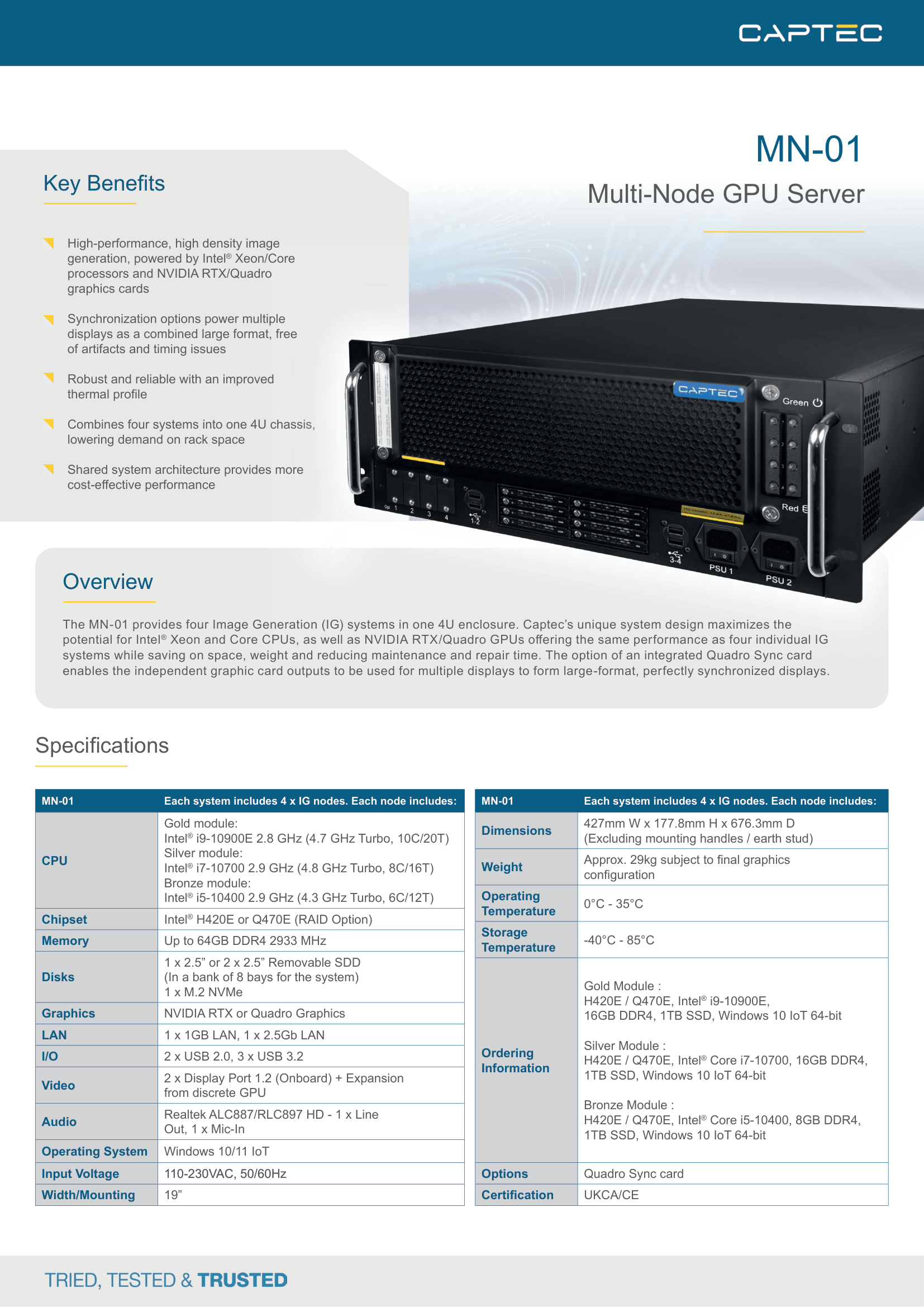

| CPU | Gold module: |
| Chipset | Intel H420E or Q470E (RAID Option) |
| Memory | Up to 64GB DDR4 2933 MHz |
| Disks | 1 x 2.5” or 2 x 2.5” Removable SDD |
| Graphics | NVIDIA RTX or Quadro Graphics |
| LAN | 1 x 1Gb LAN, 1 x 2.5Gb LAN |
| I/O | 2 x USB 2.0, 3 x USB 3.2 |
| Video | 2 x Display Port 1.2 (Onboard) + Expansion from discrete GPU |
| Audio | Realtek ALC887/RLC897 HD – 1 x Line |
| Operating System | Windows 10/11 IoT |
| Input Voltage | 110-230VAC, 50/60Hz |
| Width/Mounting | 19” |
| Dimensions | 427mm W x 177.8mm H x 676.3mm D |
| Weight | Approx. 29kg subject to final graphics |
| Operating Temperature | 0°C – 35°C |
| Storage Temperature | -40°C ~ 85°C |
| Ordering Information | Gold Module : |
| Options | Quadro Sync card |
| Certification | UKCA/CE |
