The MCE-212 embedded computer platform is DNV 2.4, IACS E10 and IEC60945 certified, making it suitable for mission-critical shipborne applications. Fanless operation, isolated expansion and a wide DC input range ensures the platform can function at full capacity in a marine environment. Versatility is enhanced by a range of approved I/O and various mounting options.
The MCE-212 is certified to marine standards DNV 2.4, IACS E10, ensuring it can be specified with confidence for a variety of shipborne applications.
The MCE-212 features a rugged fanless design, combining excellent thermal performance with low weight. The system operates with no moving parts, ensuring silent operation and improving ease of maintenance to support high reliability.
The low power Intel® Atom™ processor keeps upfront and through-life costs to a minimum. The processor is optimised for energy efficiency, ensuring low thermal output and meaning the MCE-212 can be specified with minimal impact on install location. Integrated Intel® HD graphics equip the platform to deal with demanding graphics applications.
The MCE-212 is designed for flexibility to fit a range of applications, with a number of configurable I/O options ensuring compatibility with any requirement. This includes USB and GPIO, along with three isolated RS-422/485 auto-detecting serial ports.
The MCE-212 has an operating temperature range of -15°C to 55°C, delivering extended operational life in applications with challenging temperature demands.
The chassis is compatible with VESA, desktop and wall-mounting, ensuring the platform can be integrated into the desired environment with minimal time and effort.
The MCE-212 has an operating temperature range of -15°C to 55°C, delivering extended operational life in applications with challenging temperature demands.
| CPU | Intel® Atom Dual Core D2550 1.86 GHz |
| Chipset | Intel® NM10 |
| Memory | 2GB DDR3 (expandable to 4GB) |
| Disk Expansion | 1 x 2.5-inch and 1 x mSATA |
| Storage | 1 x mSATA 32GB (default) to 128GB SSD, 1 x 2.5-inch 32GB to 128GB SSD |
| Graphics | Onboard processor |
| LAN | 2 x gigabit LAN ports |
| I/O | 2 x USB, 1 x RS232 |
| Optional I/O | 4 x USB 2.0 by pin-header (internal) |
| Video | 1 x VGA |
| Audio | Microphone, line In, line Out |
| Operating System | Windows XP, Windows 7, Linux |
| PSU | Typical 60W power consumption |
| Input Voltage | 9 – 36 V DC input acceptable |
| Width/Mounting | VESA, desktop, wall mounting |

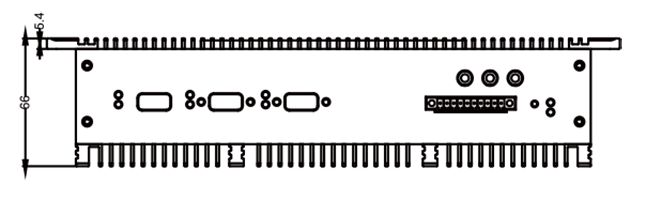

| Dimensions | 296mm (W) x 66mm (H) x 169mm (D) |
| Construction | Aluminium housing |
| Operating Temperature | -15°C to 55°C |
| Shock | 15G, 11ms duration |
| Vibration | 5Hz~500Hz /1Grms /3 Axis |
| Certification | DNV 2.4, IACS E10, IEC60945 |
| Ordering Information | MCE-212 marine-certified computer with D2550, 1.83GHz processor |
