We offer a fully managed service including vehicle surveys, supply of all hardware, on-site installation, multiple warranty options and returns servicing.
Expanding the tablets existing I/O, this dock provides two RS232 serial ports alongside WiFi and optional cellular RF connections. Additional interfaces can be designed into the device using our Tablet+ service.
With power, Ethernet and USB 3.0 pass-through built into the dock, your tablet can quickly and easily be charged and connected to external devices. This can save time as all connections are made simultaneously when the tablet is docked.

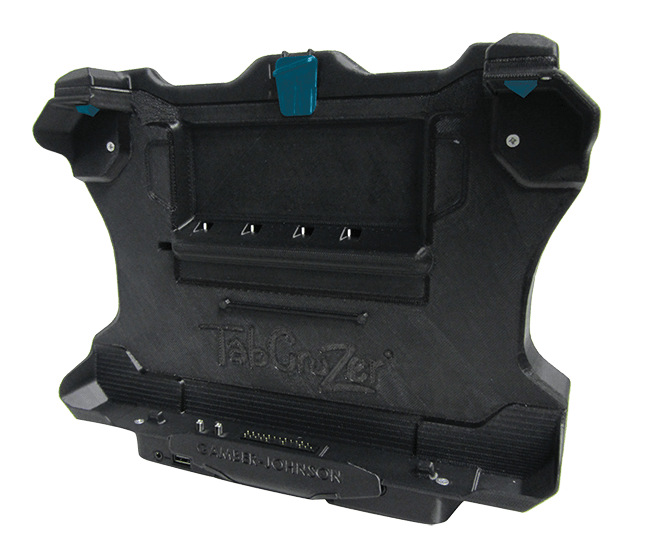

Fits all configurations of the Dell Latitude 12-inch rugged tablet.
With or without dual RF and other I/O ports, the dock can be tailored to fit your specific needs. Reduce the ‘fiddle-factor’ with one-handed docking and undocking, allowing for quick access to your tablet.
The dock offers a steady and reliable platform for your Dell device, while maintaining full usability and functionality. Additionally, your tablet can be locked in place, preventing theft.
| Compatibility | Dell Latitude 12-inch |
| LAN | 1x RJ45 LAN port |

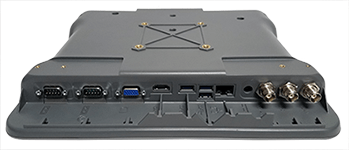

| I/O | 2x USB 3.0, 2x USB 2.0, 2x RS232 serial, 1x VGA, 1x Display Port, 1x mic/AUX, optional 1x dual-RF external antenna |
| Input Voltage | 12-16V/12-32V/20-60V/72-110V VDC power adaptors |
| Mounting | Mountable in a wide range of vehicles |
| Dimensions | 264mm W / 329mm H / 72mm D |
| Weight | 1.63kg |
| Construction | Steel and composite |
| Storage Temperature | MIL-STD-810G: -51°C – 71°C |
| Operating Temperature | MIL-STD-810G: -21°C – 60°C |
| Functional Shock | MIL-STD-810G |
| Mechanical Shock | MIL-STD-810G |
| EMC Testing | EN 50498:2010, EN 55032:2015 |
| Impact – Crash Hazard | SAE J1455 |
| Vibration | MIL-STD-810G |
| Electrostatic Discharge | ISO 10605 |
| Certification | EN 50581:2012 RoHS2 Directive 2011/65/EU, FCC, CE, E Mark |
| Ordering Information | 7160-0840-00 (no RF pass through), 7160-0840-02 (dual-RF pass through), 7160-0881-00 (cradle) |
