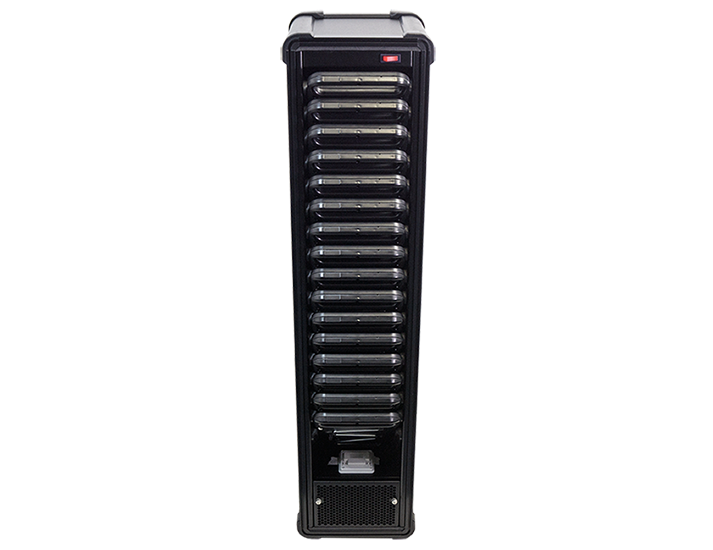

The TCS-316 tablet charging station has been designed and developed specifically to meet the needs of applications where large populations of tablet computers are used and charged simultaneously. Having a single point of cable-less charging completely eliminates the clutter and complication caused by additional leads and adapters. Space available for charging tablets is typically minimal. The TCS charging station creates a compact footprint, requiring far less space to power bigger estates of tablets.
Designed for locations where large estates are used on a single site, the charge station provides compact and hassle-free charging for 16 tablets.

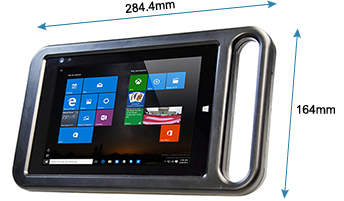

The cable-free architecture simplifies putting the X231 onto charge, facilitating self-service installations and reducing the time spent by staff issuing and docking tablets.
Cable-less docking eliminates downtime and prevents issues associated with cable breakages due to wear and tear.
With three vertical stacks of 16 tablets, the charge station minimises floor-space required to keep tablets charged.

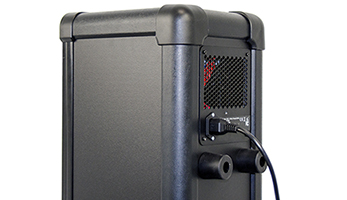

Built-in cooling ensures tablets are reliably and efficiently charged. An optional seven day time switch can be specified to schedule charging and prevent unnecessary trickle charging.
| Compatible Tablets | X231 |
| Charging Bays | 16 bays – 5.4VDC / 3.0A per bay |
| Input Voltage | Configurable for 110 VAC 60Hz or 240 VAC |
| Rentention | M6 floor retention bolt or wall retention strap |
| Dimensions (W x H x D) | 245 x 1029 x 292mm |
| Weight | 18kg |
| Operating Temperature | 0-30°C |
| Storage | -10°C – 50°C |
| Certification | CE, FCC (TCS-348-1 only) |
| Options | 7 day/24 hour time switch |
