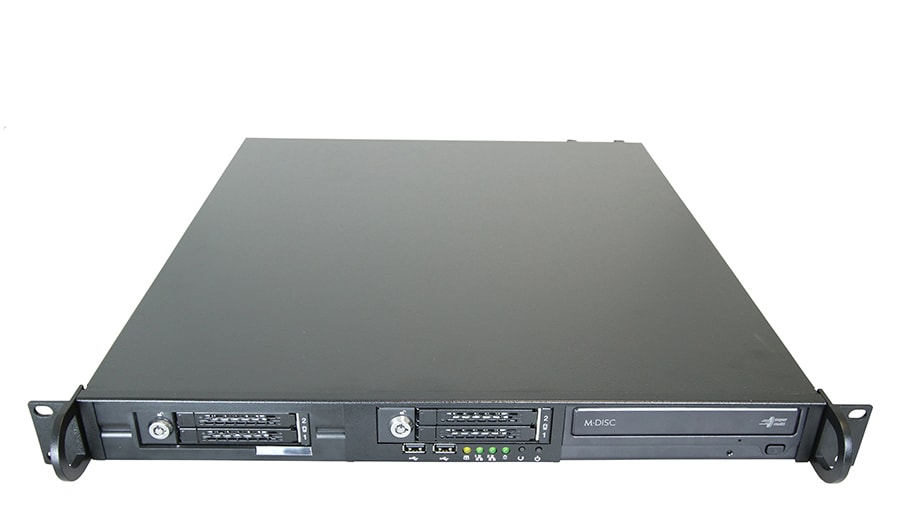

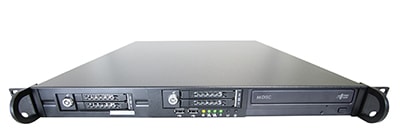

The RCC-415 1U railway computer is certified to EN 50121-4:2006, making it ideal for a range of applications from surface to underground installations, including trackside approval to three metres. Harnessing the power of Intel’s 7th generation processors and available in a number of configurations, the RCC-415 railway computer is supported by an extended 15 year product roadmap. With industrial components and rigorous testing to secure high availability, uptime is maximised in mission critical applications.
To see our full range of certified railway computers, click here.
Through expert component selection, comprehensive testing and a managed certification process, the RCC-415 is fully certified to rail standards EN 50121-4:2006, including trackside approval to a distance of three metres.
The RCC-415 features redundant power supplies, RAID support with hot swappable drive bays and have been tested to an extended operating temperature of 0-45°C. The specification of industrial components ensures increased mean time before failure (MTBF) and mean time to repair (MTTR) rates.
The RCC-415 is configurable with a range of Intel Celeron, Core i3, i5 and i7 processors, delivering the flexibility to meet your performance and budgetary requirements. The 7th generation architecture features a 15 year roadmap for optimised system longevity and continuity, while Intel Active Management Technology (iAMT) provides remote out-of-band management for round-the-clock accessibility.
We can make modifications including custom branding, chassis alterations and I/O customisation for MOQs as low as ten units, meeting the exact demands of your application at a cost-effective price point.
To streamline system rollouts, we can preconfigure systems with a range of operating systems, including Windows Server 2016, Windows 10, Linux and VMWare.
The RCC-415 is manufactured under an established ISO 9001 quality management system, guaranteeing complete quality and ensuring your expectations are met and exceeded.
| CPU | Intel Core i3-7101E (2 Core, 3.9GHz) |
| Chipset | Intel Q170 Express |
| Memory | Up to 64GB DDR4 2400MHz UDIMM |
| Graphics | Intel HD Graphics 630 |
| Expansion | 1 full height slot |
| LAN | 1 x Intel I210 / 1 x Intel I219LM |
| Storage | 4 x 2.5” hot swap HDD or SSD supporting RAID 0,1,5,10 |
| Video | 1 x VGA (DSub) / 3 x display port (supports three displays) |
| Front I/O | Power Switch, Reset Switch, Power LED |

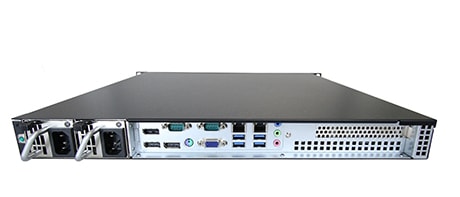

| Rear I/O | 2 x RS232/422/485, 4 x USB 3.0 |
| Audio | Mic-in, line-in, line-out |
| Operating System | Microsoft Windows 7 / Windows 8 / Windows 10 / |
| Power Supply | Redundant 1+1 400W hot swap power supply |
| Power Supply Ratings | Input voltage: 100-240VAC |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 427mm x 44mm x 521mm (19” rack mount) |
| Weight | 13.8KG (Gross) |
| Cooling | 4 x 40mm fans |
| DVD | SATA DVDRW |
| Reliability | Critical components failure >45,000 hrs @ 25°C |
| Expected Discontinuance | Q3 2030 |
| Certification | CE, EN 50121-4:2006, EMC Radiated Emissions / EN61000-6-4, EN55032 Conducted Emissions / EN61000-6-4, EN55032, EN61000-3-2, EN61000-3-3 Transient Bursts / EN61000-4-4 Surge / EN61000-4-5 Conducted Immunity / EN61000-4-6 Radiated Immunity / EN61000-4-3 Magnetic Field Immunity / EN61000-4-8 ESD Immunity / EN61000-4-9 Electrical Safety |
