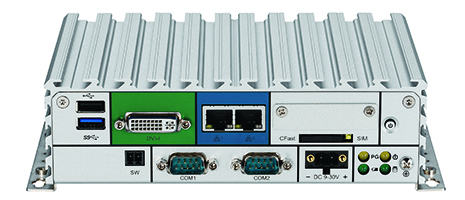

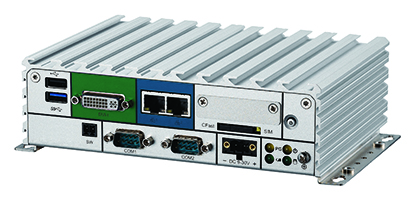

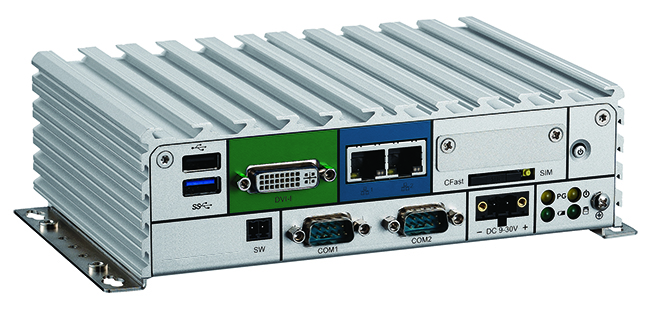

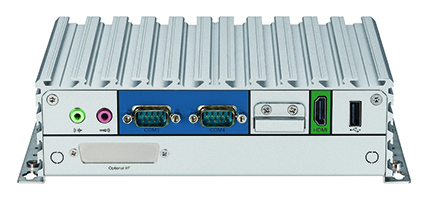

Compact, reliable and versatile small fanless embedded computer platform combining high processing power with low power consumption. A rugged construction and wide temperature tolerance with multiple I/O connectivity and wide voltage input makes this platform ideal for applications including machine automation, kiosks, access control and remote monitoring.
The low power Intel® Atom™ processor keeps upfront and through-life costs to a minimum. The processor is optimised for energy efficiency, ensuring low thermal output and meaning the EFC-212 can be specified with minimal impact on install location. Integrated Intel® HD graphics equip the platform to deal with demanding graphics applications.
The EFC-212 has a compact of footprint of 185mm x 131mm, meaning it can be easily installed in applications where space is restricted.
Multiple serial and digital I/O capabilities alongside WiFi support, CFast storage and mini-PCIe expansion options ensure the EFC-212 will meet your exact requirements.
Designed and manufactured optionally with no moving parts, the EFC-212 can be installed in applications where shock and vibration are prominent, without compromising performance or reliability.
The 9-30V DC input power provisions for fluctuating power sources, achieving compatibility with a broader variety of applications and larger equipment installations.
The EFC-212 has an operating temperature range of -20°C to 70°C, providing extended operational life in applications with challenging temperature demands.
| CPU | Intel® Atom E3826 Dual Core, 1.46GHz |
| Memory / Storage | 2GB DDR3, expandable to 4GB / 1 x SATA 32GB SSD, expandable to 128GB (optional HDD) 1 x CFast |
| Graphics | Intel® HD graphics |
| Expansion | 1 x mini-PCIe slot; 1 x SIM slot |
| LAN / I/O | 2 x Gigabit LAN Ports; optional WiFi/3.5G mini-PCIe modules / 2 x RS232/422/485, 2 x RS232 1 x USB 3.0, 2 x USB 2.0 |
| Optional I/O | Optional 4 x GPI, 4 x GPO; Optional Hilscher automation mini-PCIe modules |
| Video | 1 x HDMI, 1 x DVI-I / 1 x mic in, 1 x line out |
| Operating System | Win 7/8, Linux |
| Input Voltage | 9-30 VDC; Optional 24V 60W AC power adapter |
| Dimensions | 185mm (W) x 54mm (H) x 131mm (D) |
| Operating / Storage Temperature | Op: -20°C to 70°C / St: -30°C to 85°C |
| Shock / Vibration | 50g, 11ms (CFast); 2g, 5-500Hz (CFast/SSD) |
| Certification | CE, FCC Class A |
