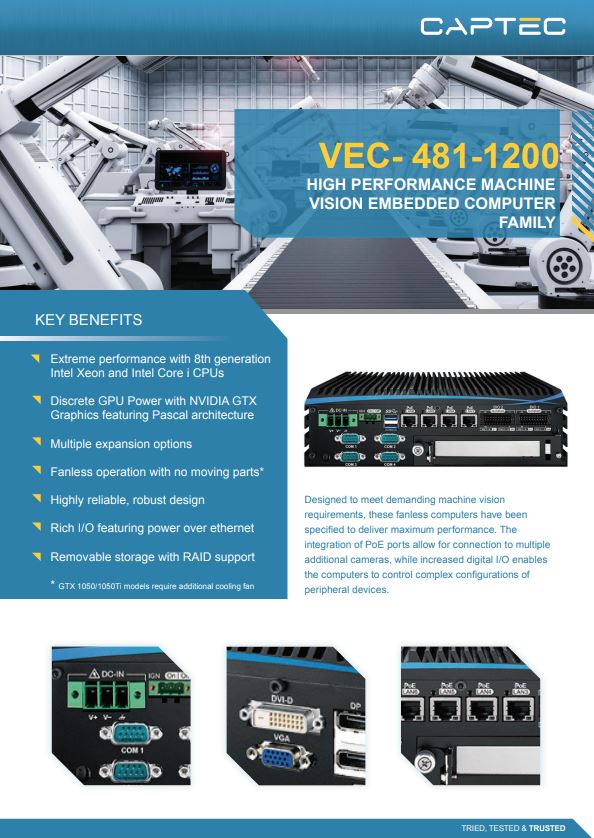

Designed to meet demanding machine vision requirements, these fanless computers have been specified to deliver maximum performance. The integration of PoE ports allow for connection to multiple additional cameras, while increased digital I/O enables the computers to control complex configurations of peripheral devices.
Industry-leading performance with Intel’s 8th generation Xeon and Core i technology. The VEC-481-1200 family features options for high performance (up to 4.6GHz) multi-core processors designed for demanding vision and imaging applications.
The VEC-481-1200 product family features options for NVIDIA GTX 1050 graphics. Featuring up to 768 CUDA GPU cores, these enhanced systems are designed to offer superior GPU compute performance and support a range of industry standard APIs including OpenGL and Vulkan API.
1 x PCIe X16, 2 x 10GbE (optional), 2 x Mini PCIe, M.2, SUMIT, CFast and optional PCI for legacy expansion cards provide a wealth of expansion and customisation options for application-specific requirements. Captec will install, configure and test the complete platforms, ensuring total functionality before delivery.
The rugged, fanless design combines excellent thermal performance with low weight. The systems operate with no moving parts, ensuring silent operation and improving ease of maintenance to support high reliability.
*GTX1050/1050Ti models require an additional cooling fan
With its robust design, the VEC-481-1200 product family is protected against high shock and vibration conditions which, coupled with an operating temperature range of -40°C to 75°C, provides extended operational life in a range of challenging environmental conditions. Options for M12 LAN connectors offer additional protection to protect I/O in the presence of heavy shock and vibration.
6 x GbE LAN, 4 x PoE LAN (optional M12 connectors), 4 x video displays, 6 x USB 3.1 (Gen2), 3 x SIM slots, 4 x COM and GPIO ports provides compatibility with a wide range of install environments and machine vision applications.
The VEC-481-1200 product family features dual hot swap 2.5-inch HDD/SSD bays with support for RAID 0/1 to enhance system performance and availability.
Intel Xeon /Core™ i7/i5/i3 processor (Coffee Lake-S)
2 x DDR4 2666MHz RAM, up to 64GB
2 x removable 2.5” SSD (supports RAID 0/1), 2 x mSATA, 1 x M.2
Intel HD P630/630 (dependent on CPU)
1 x PCIe X16 (MVE-21-1210 only)
6 x gigabit Ethernet (with 4x PoE)
4 x M12 PoE gigabit Ethernet (MVE-21-1210M and MVE-21-1201M)
6 x USB 3.1 (Gen2)
1 x DVI-I: up to 1920 x 1200 @ 60Hz
Realtek ALC892, channel HD audio
6 – 36V DC Input
260mm (W) x 215mm (L) x 79mm (H)
35W TDP CPU: -40°C to 75°C (-40°F to 167°F)
