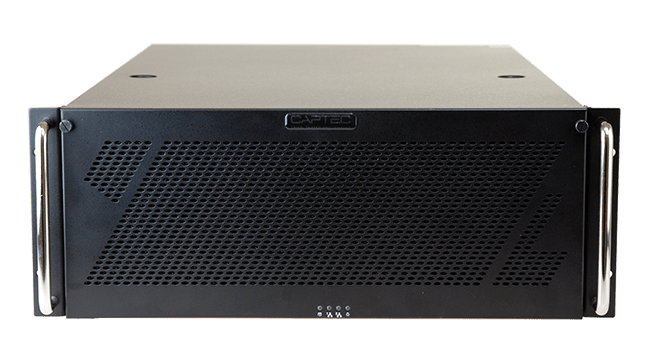

Our range of rail computers is designed to EN50121-4:2006 standards for a diversity of railway applications. Powered by Intel’s Core-i processors, these rackmountable computers offer excellent performance, redundant power supplies and hot-swap storage with RAID support. This makes them ideal choice for a critical rail applications, from surface to underground installations, including trackside.
Through expert component selection and extensive industry know-how, we offer a range of configurable 4U rackmount systems that are designed to EN50121-4:2006 rail standards.
Industrial-grade components, filtered air intakes and front I/O protection allow for flexible installation into various rail environments, including trackside.
Industry-leading performance with Intel® Core i technology. The RC-44 features options for a range of processors with on-board graphics, ensuring the perfect balance between performance and budget is achieved for your application.
High reliability, industrial-grade components designed for 24/7 operation combined with a robust construction optimizes the service life of the RC-44.

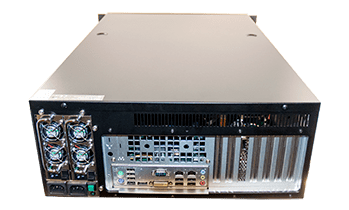

The RC-44 features dual redundant power supplies offering high availability, 24/7 continuous operation for critical applications.
The RC-44 features hot-swappable drive bays for ease of access supporting either HDD or SSD. Additionally RAID support offers enhanced data integrity to keep critical information secure.
| CPU | Intel® Core-i 3/5/7 Processor |
| Memory | Up to 32GB RAM |
| Graphics | Intel® graphics |
| Expansion | 7 full height full length slots |
| LAN | 2 x Gigabit Intel® LAN |
| Storage | 3 x 3.5” Hot-swap HDD or SSD supporting RAID 0,1,5 |
| Video / Audio | VGA (DSub) / Display port |
| Operating System | Windows 10 / Windows Server 2012 / Linux |
| Power Supply | Redundant 1+1 500W hot-swap power supply |
| Input Voltage | 105-264VAC |
| Operating Temperature | 0c-60c |
| Dimensions | 427mm x 176mm x 570mm |
| DVD | SATA DVDRW |
