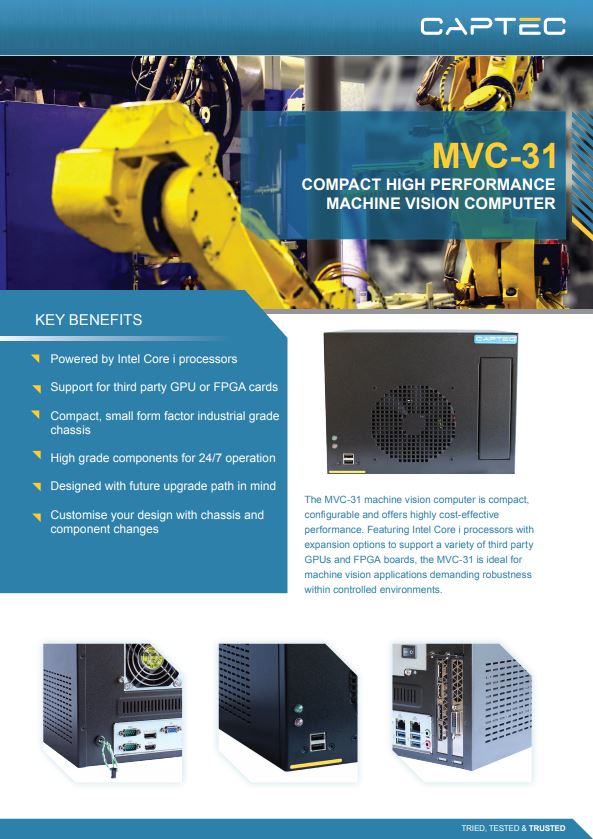

The MVC-31 machine vision computer is compact, configurable and offers highly cost-effective performance. Featuring Intel Core i processors with expansion options to support a variety of third party GPUs and FPGA boards, the MVC-31 is ideal for machine vision applications demanding robustness within controlled environments.
Industry-leading performance with Intel’s latest generation Core i technology. The MVC-31 features options for a range of processors with onboard graphics, ensuring the right performance level is specified for your application while retaining cost-effectiveness.

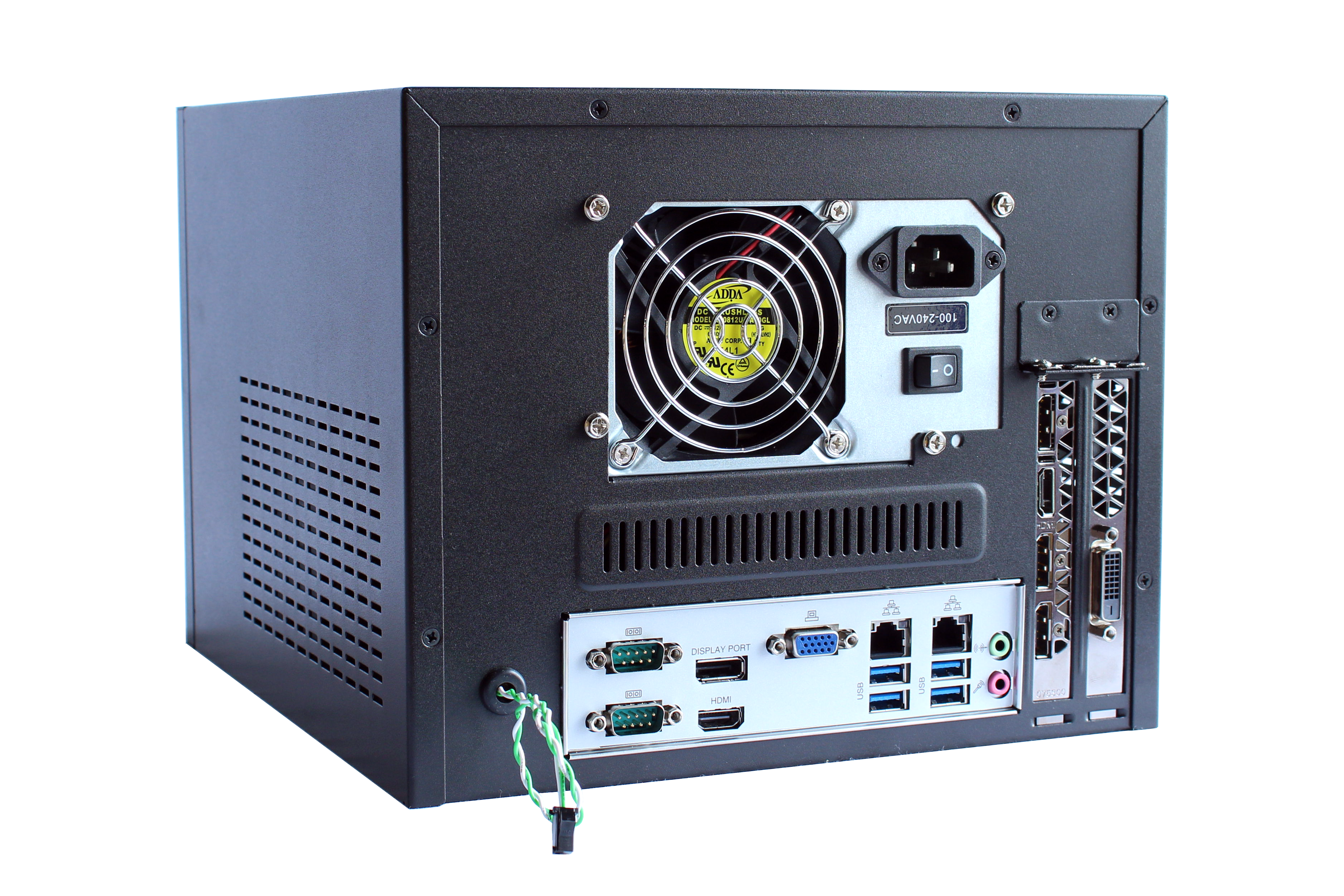

The MVC-31 is expandable with a full-height, full-length, double width PCIe slot enabling support for third party GPU or FPGA application-specific cards
A robust, small form factor industrial grade chassis designed to pack high performance components into a small footprint makes the computer suitable for a range of installations.
The MVC-31 has been designed with operational runtime and product availability in mind, while high grade components with high thermal tolerance enable 24/7 operation.
We have developed the MVC-31 using industry standard form factors, affording the ability to move the computer in line with technology updates whilst still servicing and upgrade units already in deployment.
The design can be modified from MOQs as low as ten without incurring engineering charges for alterations including custom branding and further ruggedisation.
| CPU | Intel 6th and 7th generation Core i processors (up to 65W) |
| Memory | 2 x DDR4 2133MHz SODIMM (up to 32GB RAM) |
| Storage | 1 x 2.5” SSD, 1 x mSATA |
| Graphics | Intel® HD Graphics 530/630 (dependent on CPU) |
| Expansion | 1 x PCIe 3.0 x16 |
| I/O Ports | 1 x RS232 |
| LAN | 2x gigabit Ethernet LAN |
| Video/Audio | 1 x Display Port |
| Operating System | Windows 10 |
| Input Voltage | 100-240VAC |
| Power Supply | 600W high efficiency 80PLUS |
| Dimensions | 260mm (W) x 280mm (L) x 208mm (H) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Certification | CE, FCC |
