Industry-leading performance with Intel® Core i technology. The MCE-213 features a powerful 2.5 GHz Intel© Core i7 CPU for superior processing power and graphics performance.
The MCE-213 is designed for flexibility to fit a range of applications, with a number of configurable I/O options, including USB and GPIO, along with three isolated RS-422/485 auto-detecting serial ports.
The MCE-213 features three isolated RS422/485 serial ports, securing compatibility with a variety of applications and larger equipment installations.

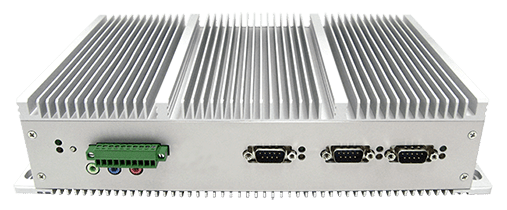

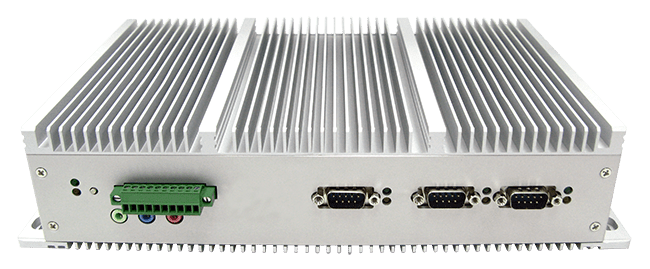

The MCE-213 features a rugged fanless design, combining excellent thermal performance with low weight. The platform operates with no moving parts, ensuring silent operation and improving ease of maintenance to support high reliability.
The 9–36V DC input power with 1.5kV isolation provisions for fluctuating power sources, providing protection against transient surges from switching of motors, relays and other highly powered sources.
The MCE-213 has an operating temperature range of -15°C to 55°C, providing extended operational life in applications with challenging temperature demands.
Marine-certified embedded computer
Intel© Core i7-3555LE, 2.5GHz
1 x SODIMM – 2GB DDR3 (1333 / 1600 MHz), expandable to 8GB
1 x mSATA 32GB SSD, expandable to 128GB 1 x 2.5-inch SSD, max 128GB
2 x Gigabit LAN Ports
2 x USB 3.0, 1 x RS232/422/485, 3 x isolated RS422/485 auto-detecting, 8 x GPIO
1 x HDMI, 1 x VGA
Windows XP, Windows 7, Linux
9 – 36V DC, 60W, 1.5kV isolation

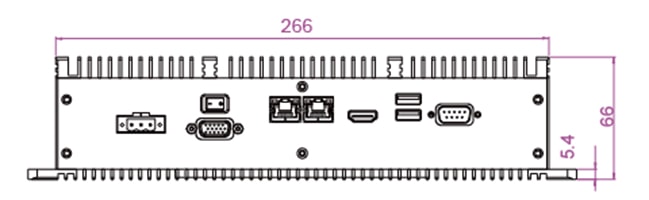

296mm (W) x 71mm (H) x 214mm (D)
-15°C to 55°C
|Shock / Vibration||
1.5g, 11ms / 1g, 3 axis
