The project focused on the build-to-print manufacture of a naval rack assembly designed to Ministry of Defense standards for a wide range of maritime applications. Supported by a comprehensive drawing pack and configurable picklist, the design allowed specification adjustments for different deployments while maintaining standardization across the fleet.
The project required a dependable second-source manufacturing partner capable of delivering consistent, high-quality output under strict drawing and process control. The customer needed precise fabrication supported by a fully documented, traceable workflow and Warpaint finishing aligned with the 2025 BR 3939 standards. They also sought a supplier who could provide long-term production assurance and apply the same disciplined, reliable approach they had experienced previously through specialized computing programs.
Captec delivered the full mechanical build of the naval rack from its specialized Subsystems Engineering facility, managing the surface preparation, fine limit metalwork fabrication, specialized finishing, assembly, and delivery under controlled build-to-print conditions. The project began with a detailed review of the customer’s drawing pack to ensure every tolerance, material, and finishing requirement was fully interpreted and validated before production commenced.
Precision metalwork fabrication was carried out using advanced CNC manufacturing equipment, with tight dimensional control to meet the defense-standard specification. Specialist finishing was completed in-house in line with the latest Warpaint standards, delivering a military-grade coating that provides high durability and corrosion resistance for naval environments. Captec’s welding and paint specialists supported compliance with all specified standards, while dedicated quality engineers oversaw the inspection and validation of each stage.

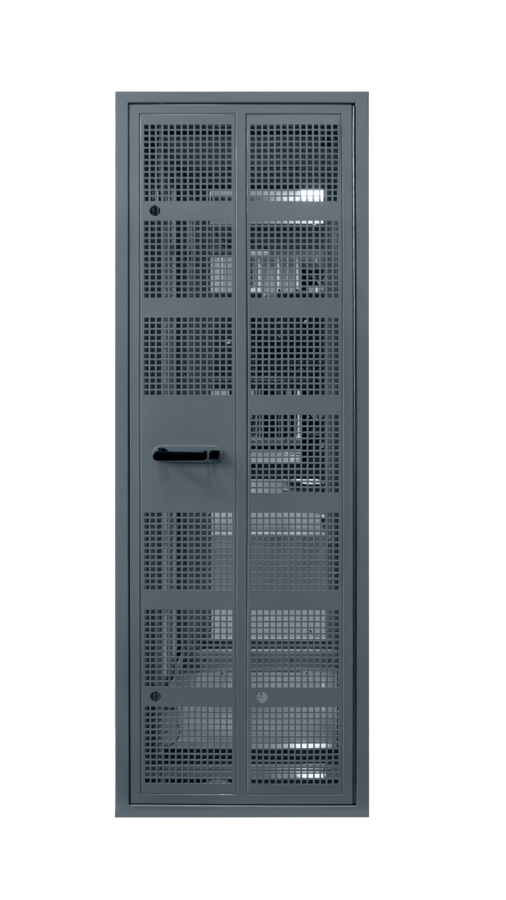

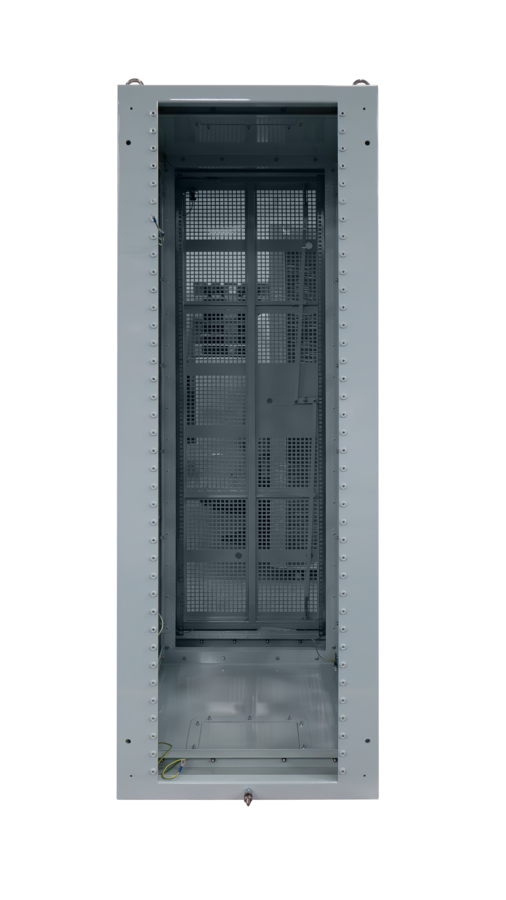

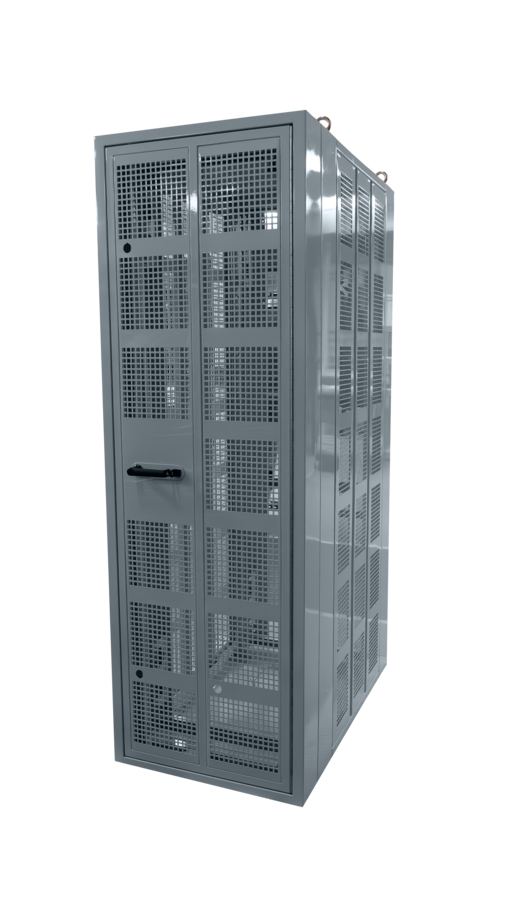

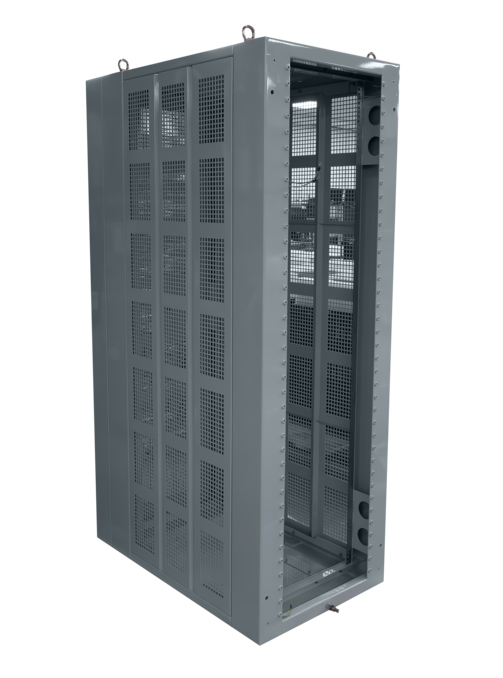

Once fabricated and finished, the racks were mechanically assembled by skilled technicians and delivered as fully verified enclosures ready for integration. During the process, Captec’s team also identified opportunities for drawing refinement, feeding back recommendations to improve documentation consistency and enhance quality repeatability for future build-to-print runs.
The project concluded with a successful First Article Inspection (FAI) that achieved full compliance with the customer’s build-to-print specification and validating Captec’s manufacturing, finishing, and quality control processes. The outcome demonstrated consistent performance across fabrication, coating, and assembly, meeting the required defense manufacturing standards.
In parallel, Captec’s engineering team conducted a structured review of the supplied drawing pack, identifying areas for potential refinement, including tolerance alignment, fastening methods, and documentation consistency. These observations were provided to the customer to support future improvements in design repeatability and manufacturing efficiency.
The successful delivery reinforced confidence in the build process and demonstrated the benefits of controlled, transparent manufacturing under strict configuration management. Captec now continues to support ongoing naval rack programs through the same approach, providing reliable, repeatable production aligned to defense requirements and contributing to the customer’s long-term build-to-print strategy across its naval projects.
