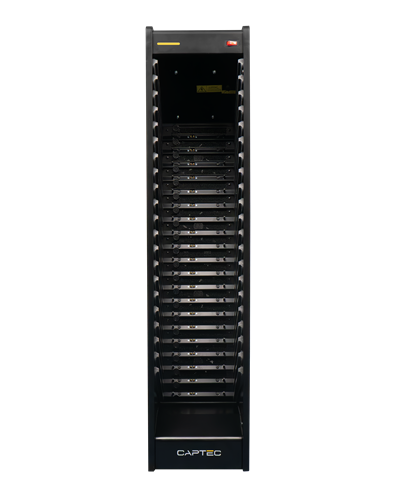

The TCS-250 20-Bay has been designed and developed specifically to meet the needs of applications where large populations of tablet computers are used and charged simultaneously.
Having a single point of cable-less charging completely eliminates the clutter and complication caused by additional leads and adaptors. Space available for charging tablets is typically minimal. The TCS charging station creates a compact footprint, requiring far less space to power bigger estates of tablets.
Simultaneously charges up to 20 tablets per station, with the option to group in 3 stations (60 tablets) configurations for larger deployments.
Pogo-pin docking eliminates cable management, reducing setup time and maintenance effort.
Intuitive LED charge indicators on each tablet allow staff or players to quickly confirm device readiness at a glance
Compact footprint optimizing venue space while enabling high-density charging of multiple devices concurrently.
Removing the need for individual chargers, minimizing clutter, and substantially reducing operational staff
Baying kits that allow easy grouping of stations with a single mains inlet for efficient installation and simplified scaling
| Compatible Tablets | X240 and X250 |
| Charging Bays | 20-Bays – 12V / 2A per charging bay |
| Input Voltage | 110 VAC 60Hz / 230 VAC 50Hz |
| Retention | M6 floor retention bolt or wall retention brackets |
| Dimensions | Single Station |
| Weight | 25kg |
| Operating Temperature | 0°C to 30°C / 32°F to 86°F |
| Storage | -10°C to 50°C / 14°F to 122°F |
| Certification | UKCA, CE, FCC |
| Options | 7-day / 24-hour time switch |
| Ordering Information | 35243 – TCS-250 – 20-bay charge station |
