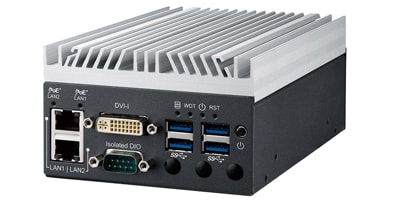

Reliable, fanless vehicle and rail computer platform with PoE and multiple mini-PCIe expansion capabilities. Its rugged construction, wide operating temperature range, shock and vibration resistance, and small size delivers powerful computing for many road and rail vehicle applications.
The low power Intel® Atom™ processor keeps upfront and through-life costs to a minimum. The processor is optimised for energy efficiency, ensuring low thermal output and meaning the RCE-200/201 can be specified with minimal impact on install location. Integrated Intel® HD graphics equip the platform to deal with demanding graphics applications.
The RCE-200/201 has an operating temperature range of -25°C to 70°C, providing extended operational life in applications with challenging temperature demands.
The 6-36V DC input power provisions for fluctuating power sources, achieving compatibility with a broader variety of applications and larger equipment installations.
The RCE-200/201 features a rugged fanless design, combining excellent thermal performance with low weight. The system operates with no moving parts, ensuring silent operation and improving ease of maintenance to support high reliability.
The RCE-200/201 is certified to EN50155 and EN50121, making the platform an ideal choice for in-vehicle and rail environments.
Customisable expansion including your choice of PoE ports alongside multiple serial and isolated digital I/O ensures the RCE-200/201 will meet your exact requirements.
Atom E3845 Quad Core, 1.91GHz
2GB DDR3, expandable to 8GB
1 x 2.5” SATA SSD/HDD, optional removable tray, 1 x mSA
On board HD graphics
2 x Mini-PCIe sockets (including mSATA), 1 x SIM socket
2 x Gigabit LAN by Intel® I21 Port with optional PoE
4 x RS232/422/485
6V to 36V, DC-in
Reset: 1 to 255 sec./min. per step
Wake on LAN, PXE supported
Monitoring temperature and voltages
|Video / Audio||
1 x DVI-I / 1 x Speaker out
Windows 7/8, Linux
Optional 60W AC power adapter
Wallmount by mounting bracket, DIN Rail Mount (Optional)
106mm (W) x 55mm (H) x 150mm (D)
-20°C to 70°C (SSD)
-40°C to 85°C
|Shock / Vibration||
50g, 11ms (SSD) / 1g, 5-500Hz (HDD)
CE, FCC, EN50155, EN 50121
RCE-200: Atom E3845 quad core
