Ideal for Android field work applications. Deploy the Toughpad B2 across your entire fleet with confidence knowing it has been tested to Panasonic’s high standards and with their proprietary COMPASS solution for Android devices.
Operating system: Android
Ideal for: Waste management & Field service

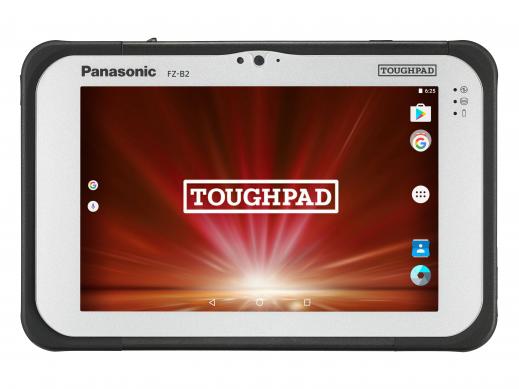

With a glove-enabled, 7-inch display and a fully rugged design to protect against hazards when dismounted, the Panasonic Toughpad FZ-B2 is an ideal foundation for Captec in-vehicle solutions.
Work both in-vehicle and out of it in any weather, with full IP65 ingress protection.
Optional dual hot-swap batteries allow you to stay untethered, meaning you never have to shut down apps while changing a battery.
Continue working even in bright sunny conditions with a vivid TFT LCD, high brightness sunlight readable display.
Optional 2D barcode module allows for quick and accurate data capture.
| CPU | Intel Atom x5-Z8550 |
| Display | 7″ WXGA (1280×800) TFT LCD outdoor display (up to 500cd/m²) |
| Memory | Up to 4GB |
| Storage | 32GB eMMC |
| Graphics | Intel HD Graphics 400 |
| I/O | 1x USB 3.0, 1x USB 3.1 Type C, 1x HDMI, 1x Headset, 1x External Antenna (Optional) |
| Optional I/O | 2D barcode reader, smart card reader |
| GNSS | Integrated |
| Mobile Data | 4G LTE |
| Wireless | Intel Dual Band Wireless-AC 8260, Bluetooth 4.2 + EDR Class 1 |
| Operating System | Android 6.0 (Marshmallow) |
| Battery | Lithium-Ion (2 call, 23 Whr) |
| Input Voltage | 16V DC, 4.06A |
| Dimensions | 203mm (W) x 132mm (H) x 18mm (D) |
| Weight | Approximately 540g |
| Operating Temperature | -29°C to 60°C |
| Drop | MIL-STD-810G |
| Ingress Protection | IP65 |
| Ordering Information | Panasonic TOUGHBOOK FZ-B2 default configuration |
