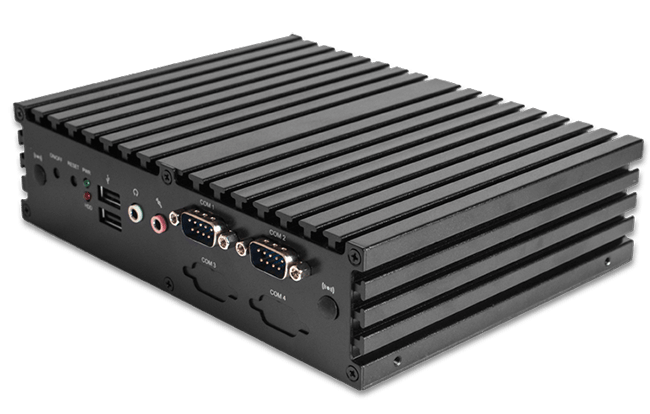

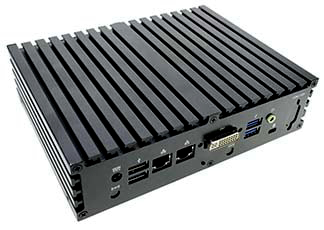

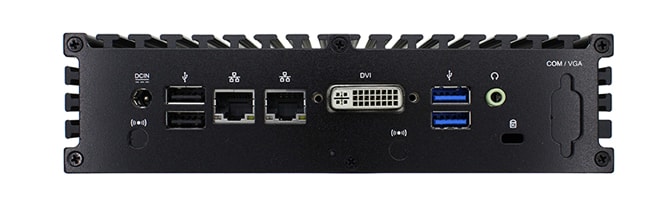

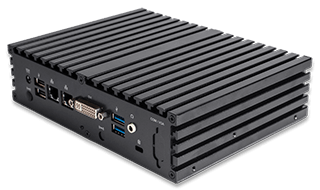

Compact, reliable and versatile small fanless embedded computer providing high processing power with low power consumption. A rugged construction with multiple I/O connectivity and wide voltage input makes this platform ideal for applications including machine automation, kiosks, access control and remote monitoring.
The Intel® Celeron™ processor delivers an optimal combination of performance and value. The processor is optimised for energy efficiency, ensuring low thermal output and meaning the EFC-217 can be specified with minimal impact on install location. Integrated Intel® HD graphics equip the platform to deal with demanding graphics applications.
Multiple serial and digital I/O capabilities and mini-PCIe expansion options ensure the EFC-217 will meet your exact requirements.
The EFC-217 has an ultra-compact of footprint of 185mm x 142mm, meaning it can be easily installed in applications where space is restricted.
The chassis is compatible with DIN rail, desktop and wall-mounting, ensuring the EFC-217 can be integrated into the desired environment with minimal time and effort.
The EFC-217 features a rugged fanless design, combining excellent thermal performance with low weight. The system operates with no moving parts, ensuring silent operation and improving ease of maintenance to support high-reliability.
| CPU | Intel® Celeron N2930 Dual Core, 1.86GHz |
| Memory | Up to 4GB DDR3 |
| Storage | 1 x 2.5-inch SSD/HDD |
| Graphics | Intel® HD graphics |
| Expansion | 1 x mini-PCIe slot (Full size) |
| LAN | 2 x gigabit LAN ports, |
| I/O | 1 x RS232/422/485 |
| Video / Audio | 1 x DVI-I |
| Operating System | Win 7/8/10, Linux |
| Input Voltage | 9-24 VDC / 12VDC 60W AC power adapter |
| Dimensions | 185mm (W) x 48mm (H) x 142mm (D) |
| Construction | Aluminium |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 85°C |
| Certification | CE, FCC ErP ready |
