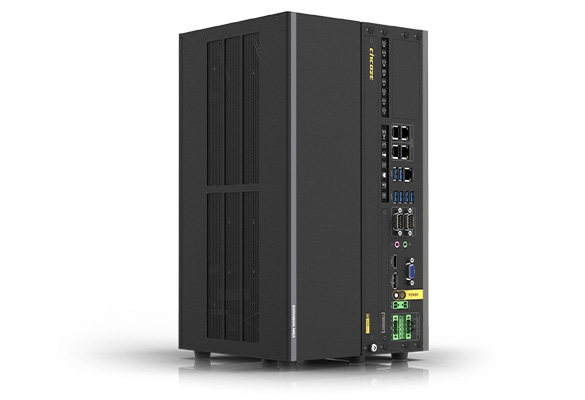

The GP-3100 is a rugged, high-performance industrial GPU computer designed for demanding edge AI, machine vision and image processing applications. Supporting Intel® Core™ Series 2 and 14th/13th/12th Generation Core™ processors, it combines advanced CPU performance with optional expansion for up to two full-length graphics cards. Its modular GPU Expansion Box design enables graphics capabilities to be configured or upgraded without replacing the core computing system, while DDR5 memory, high-speed Ethernet and multiple storage options support data-intensive applications. Rugged construction, wide-range DC power input and flexible mounting options enable integration into challenging industrial environments.
Windows
Intel Core i
Fanless
Wall Mount
Wide Temperature Range
Shock Resistant
Data Sheet
Computer
The GP-3100 supports Intel® Core™ processors with up to 24 cores and optional expansion for two full-length GPU cards rated up to 300W each at 48V DC. Combined with DDR5 memory supporting up to 96GB, the system delivers configurable processing capabilities for computationally intensive edge AI, machine vision and industrial graphics applications.
The patented GPU Expansion Box design supports single- or dual-GPU configurations with additional PCIe slots for expansion cards. Four 2.5GbE Ethernet ports, a Gigabit Ethernet port, six USB 3.2 interfaces and optional 10GbE connectivity provide high-speed data transfer, while CMI and CFM expansion modules accommodate additional networking, communication and control requirements.
The GP-3100 combines an extruded aluminum chassis with dedicated external cooling and a 9–48V DC power input. Its patented GPU mounting design secures graphics cards against vibration, while MIL-STD-810H shock and vibration compliance, multiple mounting options and configuration-dependent operating temperatures support integration in demanding industrial environments.
