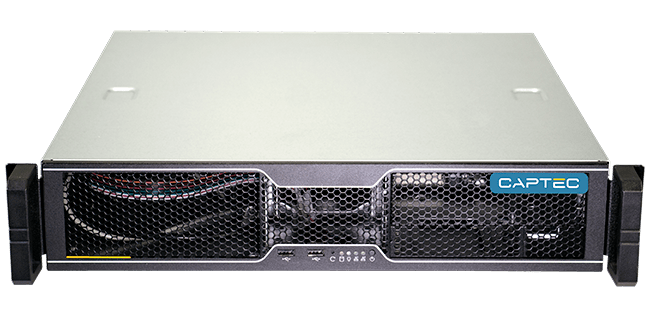

The new 2U IC-425-B is our most cost-effective off-the-shelf 2U platform. Offering a combination of high airflow, increased storage and strong security features in a shortdepth 2U chassis, the platform is an ideal fit for security applications such as CCTV where 24/7 operation in a clean, unmanaged environment is required.
Industry-leading performance with Intel® Core i technology. The IC-425-B features options for a range of processors with on-board graphics, ensuring the perfect balance between performance and budget is achieved for your application.
The IC-425-B offers a host of industry-leading technologies, designed to enhance performance, increase security and lower your total cost of ownership.
The IC-425-B is ideal for clean environments. The unobstructed airflow design delivers excellent thermal capabilities and maintenance-free operation.
High reliability, industrial-grade components designed for 24/7 operation combined with a robust construction optimises the service life of the IC-425-B
Designed with multiple different applications in mind, the IC-425-B offers multiple component configuration options along with support for both full-height and low-profile expansion cards.
The IC-425-B features extended longevity by incorporating industrial-grade components on a stable platform road map. This, coupled with Captec’s change control and BoM management processes, ensures critical components are managed to increase support for software and compliance requirements.
The IC-425-B chassis features a programmable intrusion switch (with G and S motherboard options). The switch safeguards the system from undetected interference.
The IC-425-B features isolated drive cages to protect internal components from damage caused by mechanical disk vibration.
The IC-425-B features a high-performance power supply, compliant with the 80 PLUS Ecos standard and designed to be at least 80% efficient.
| CPU | Intel Celeron G3900, Intel Core i3-6100, Intel Core i5-6500, Intel Core i7-6700, Intel Celeron G3930, Intel Core i3-7101E, Intel Core i5-7500, Intel Core i7-7700 |
| Chipset | Q170/H110/B150 (varies with motherboard) |
| Memory | 2 x DDR4 2400MHz (2133MHz with 6th Gen CPU) UDIMM (up to 32GB) |
| Disks | 1 x 5.25” External Bay, 1 x 3.5” External Drive Bay, 2 x 3.5” Internal Drive Bays or 2 x 2.5” Internal Bays, External bays can be configured with removable drive caddies |
| Operating System | Microsoft; Windows 7/ Windows 8/ Windows 10/ Server 2012 Linux *other OS available upon request |
| Power Supply | 400W 80+ Gold – AC 90~264V |
| Dimensions | 430mm (W) x 88mm (H) x 457mm (D) |
| Expansion Slots | 7 low profile or 3 full height (varies on motherboard) |
| Operating Temperature | 0°C to 40°C / 0°C to 60°C (varies on motherboard) |
