Industry-leading performance with Intel® Core i technology. The IC-31 features a washable filter to prevent dust build up impacting internal component performance. This increases reliability and extends component life by ensuring effective heat dissipation is achieved and maintained.
The IC-31 comes with expansion card slots that provide the flexibility needed for application-specific configurations. We will install, configure and test the complete platform, ensuring total functionality before delivery.
The compact, versatile form factor provides installation flexibility. The IC-31 is suitable for various installation environments in either desktop or tower orientations, making it ideal for applications where space availability is at a premium.
High reliability, industrial-grade components designed for 24/7 operation combined with a robust construction optimises the service life of the IC-31.
Designed to survive in dusty environments. The IC-31 features a washable filter to prevent dust build up impacting internal component performance. This increases reliability and extends component life by ensuring effective heat dissipation is achieved and maintained.
Full out-of-band remote management with Intel© Active Management Technology. Monitor, configure and safeguard the IC-31 through the secured network connection.
Customise your design with chassis and component changes. The IC-31 design can be modified from MOQs as low as 10pcs, without engineering charges for alterations including custom branding and further ruggedisation.

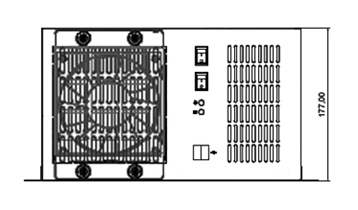

| Dimensions | 300mm (W) x 170mm (H) x 300mm (D) |
| CPU | Intel© 4th generation Core i i3-4330, 3.5GHz, Dual Core (IC-315) i5-4570S, 2.9GHz, Quad Core (IC-316) i7-4770S, 3.1GHz, Quad Core (IC-317) |
| Memory | 4GB DDR3 (Expandable to 32GB) |
| Storage | 1 x 64GB mSATA SSD (Optional HDD, CFast, multiple drives, removable caddies, RAID) |
| Graphics | Intel© HD 4600 Graphics in processor, DirectX 11.1, OpenGL 4.0. Supports up to Three Independent Displays |
| Expansion | 4 Half Length, Full Height Slots: 1 x PCIe 3.0 x16, 1 x PCIe x4, 2 x PCI. Will accommodate double width graphics cards, Mini PCIe / mSATA slot |
| LAN | 2 x Gigabit LAN Ports: 1 x Intel© 82574L Gigabit LAN, 1 x Intel© I217LM Gigabit LAN with iAMT 9.0 support |
| I/O | 4 x USB 3.0 (2 on front panel), 4 x USB 2.0, Internal USB 2.0 for dongle, 1 x RS232/422/485 |
| Video | 1 x DVI-D, 1 x HDMI, 1 x Display Port, 1 x VGA |
| Audio | Realtek ALC662 5:1 Channel Audio, Mic In, Line In, Line Out |
| Operating System | Windows 10 |
| Input Voltage | 90-265VAC, 50/60HZ, |
| Operating Temperature | 0oC – 50oC |
