Ultra-compact, reliable and versatile fanless embedded computer providing high processing power with low power consumption. A rugged construction with multiple I/O connectivity makes this platform ideal for applications where space is at a premium such as machine automation, kiosks, access control or remote monitoring.

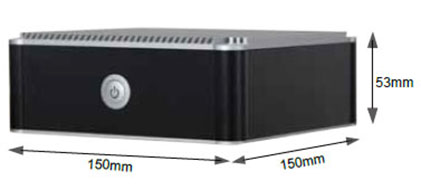

The EFC-204/205 has an ultra-compact of footprint of 150mm x 150mm, meaning it can be easily installed in applications where space is restricted.
The low power Intel® Atom processor keeps upfront and through-life costs to a minimum. The processor is optimised for energy efficiency, ensuring low thermal output and meaning the EFC-204/205 can be specified with minimal impact on install location. Integrated Intel® HD graphics equip the platform to deal with demanding graphics applications.
The EFC-204/205 is designed for flexibility in connectivity to suit a range of applications. USB 3.0 ports for smart sensors/cameras and a mini PCIe slot for further expansion ensures compatibility with any application requirement.
Designed and manufactured with no moving parts, the EFC-204/205 can be installed in applications where shock and vibration are prominent, without compromising performance or reliability.
The EFC-204/205 has an operating temperature range of -25°C to 60°C, ensuring reliable operation in extreme temperatures and environments.
| CPU | Intel® Atom E3845, 1.9Ghz; Intel® Atom E3827, 1.75Ghz |
| Memory | 2GB DDR3, expandable to 4GB / 1 x 2.5” SATA SSD; 1 x MicroSD socket |
| Graphics | Intel® HD graphics |
| Expansion | 1 x Mini PCIe slot (half size) |

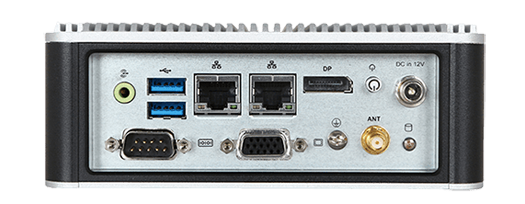

| LAN / I/O | 2 x Gigabit LAN ports / 1 x RS232/422/485; 2 x USB 3.0 |
| Optional I/O | 2 x USB 3.0 + 2 x USB 2.0 |
| Video / Audio | 1 x DP, 1 x VGA / 1 x mic in; 1 x line in; 1 x line out |
| Operating System | Win 7/8; Linux |
| Input Voltage | 12 VDC; AC power adapter |
| Dimensions / Weight | 150mm (W) x 53mm (H) x 150mm (D) / 1.3kg |
| Operating / Storage Temperature | -25°C to 60°C (SSD) / -40°C to 80°C |
| Shock / Vibration | 50g, 11ms / 5g, 5-500Hz |
| Ordering Information | EFC-204: E3845; EFC-205: E3827 |
